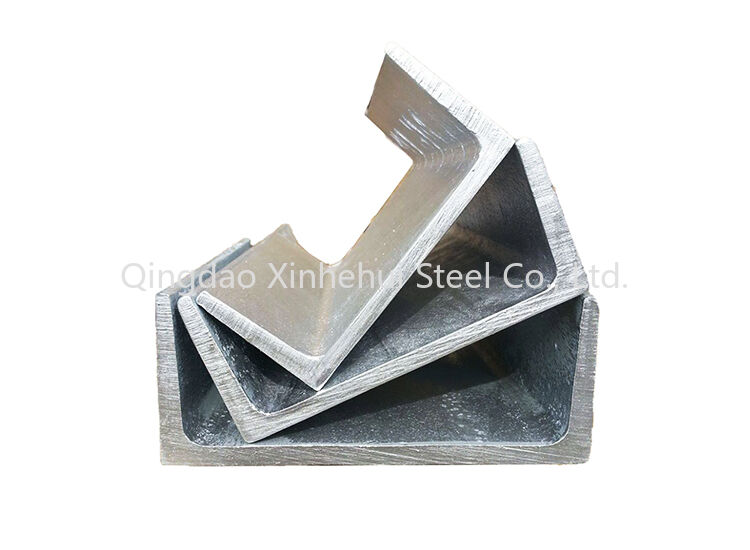

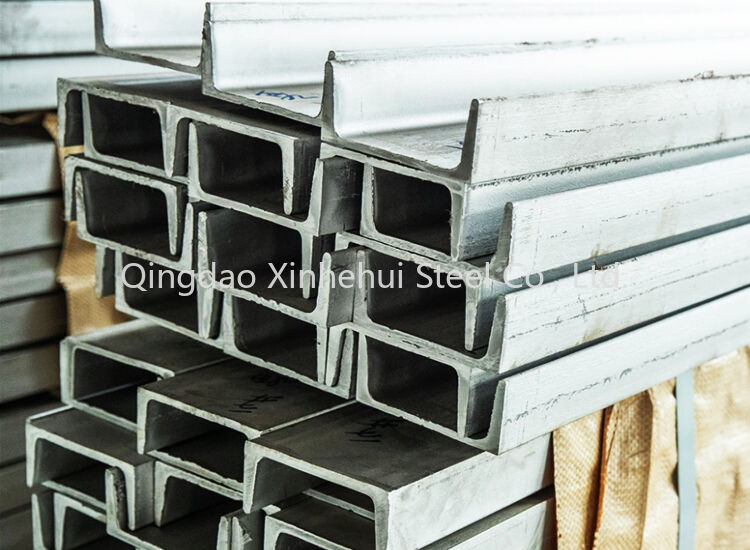

Stainless Steel U Channels
A Stainless Steel Channel is a U-shaped Structure made from Stainless Steel that is hot rolled. U channels have extended sides and shorter middle section that look like the letter U. The inside corners have specific radii that provides it the required strength and rigidity to support Stainless steel angles, and for various other structural and construction projects. The SS 304 U Channel is one of the most used U channels in the stainless steel grades.
+86 19861975716
+86 19861975716
+86 19861975716
admin@xhh-metal.com
Contact Us

Product Description

Pruduct nameASTM AISI SUS SS TP 201 202 2205 310S 304 304l 316 316l 321 409 410s 430 Stainless Steel C Channel/U Channel/H-beam/I-beam Steel
StandardASTM, ASME, EN, GB, JIS, etc
TechnicalHot Rolled
Material

301,304N,310S,316Ti,316L,316,321,S32304,347,309S,

304,409L,304L,S32101,904L,301LN,304J1,317L

Specific22# 10# 24# 34# 5# 20# 40# 28# 16# 14# 30# 32# 8# 18# 36# 12# 25#
Length6m or any length as your requirement
Application

General fabrication, transportation equipment, heavy machinery, construction, manufacturing,

industrial maintenance, agricultural.Implements, automotive industry and structural support applications.


Productchannel steel
StandardASTM,BS,GB,JIS,etc
GradeSS400, ST37-2, A36, S235JRG1
Product KeywordsU channel steel
manufacturing techniqueHot rolled(elementary) Can be processed again repeatedly
strength of extensionA36/420MPa S355JR/485MPa
SizeGB Steel channel 50*37*4.5-400*104*14.5JIS Steel channel 75*40*3.8*7-152*76*6.4*9EN Steel channel 140*60*7*10-200*75*8.5*11.5
ApplicationSteel structural,doors, railway and traffice,vehchile, mechine



SPECIFICATIONSIZEKG/M
5#50*37*4.55.438
6.3#63*40*4.86.634
8#80*43*5.08.045
10#100*48*5.310.007
12#120*53*5.512.059
14#A140*58*6.014.535
14#B140*60*8.016.733
16#A160*63*6.517.24
16#B160*65*8.519.752
18#A180*68*7.020.174
18#B180*70*9.023
20#A200*73*7.022.337
20#B200*75*9.025.777
22#A220*77*7.024.999
22#B220*79*9.028.453
25#A250*78*7.027.41
25#B250*80*9.031.335
25#C250*82*11.035.26
28#A280*82*7.531.427
28#B280*84*9.535.823
28#C280*86*11.540.219
30#A300*85*7.534.463
30#B300*87*9.539.173
30#C300*89*11.543.883
32#A320*88*8.038.083
32#B320*90*10.043.107
32#C320*92*12.048.131
36#A360*96*9.047.814
36#B360*98*11.053.466
36#C360*100*13.059.118
40#A400*100*10.558.928
40#B400*102*12.565.204
40#C400*104*14.571.488

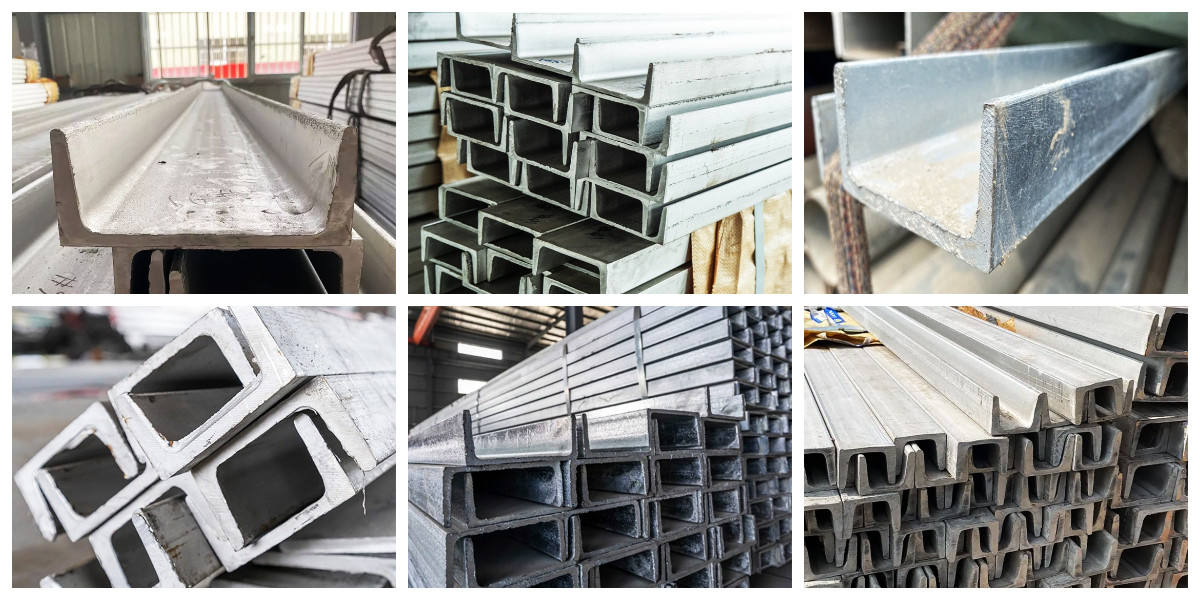

Product Show
