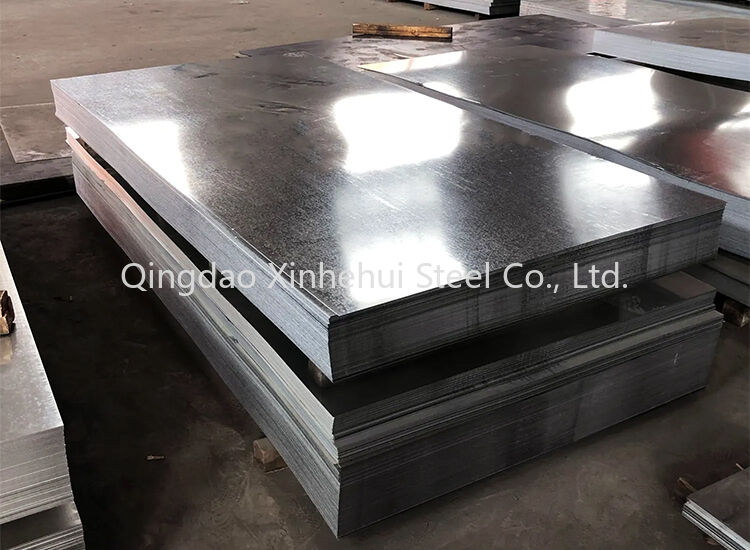

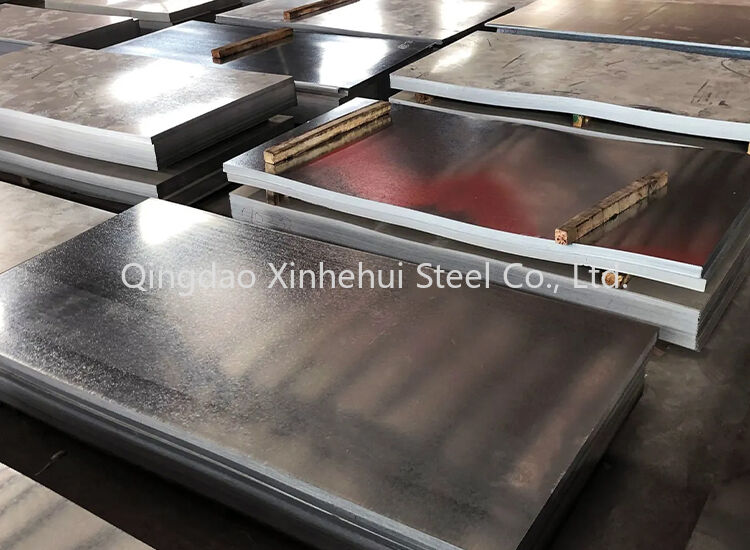

SS400 Galvanized Sheet
Galvanized steel sheet refers to a steel sheet with a layer of zinc on the surface for aesthetics and anti-rust purpose. It is most widely used in buildings and also applied as the base metal of color coated steel. Due to the different galvanizing processes, the zinc spangles will be different, including big spangles, regular spangles, small spangles, and zero spangles.
+86 19861975716
+86 19861975716
+86 19861975716
admin@xhh-metal.com
Contact Us

Product Description

The substrate is hot rolling and cold rolling steel, which is with high strength, good processability, but is easy to corrosion. Through the galvanizing process, it will form a protective layer to prevent the substrate from rusting and prolong its service life. Here is how the zinc coating work: After zinc and oxygen reactions, there will be an oxide film to isolate the substrate from air and moisture to prevent oxidation. If the zinc layer scratches, somewhere around the zinc will melt to protect bare steel from corrosion.


Product NameGalvanized Steel Sheet
Stock Thickness0.12mm to 4mm
Width600mm to 2,000mm
SpangleZero spangles (0.12-2.0 mm), 0.7-4 mm with small spangles, regular (big) spangles
Zinc Layer Thickness30 g/m2-275 g/m2
MaterialDX51D + Z, DX52D + Z, DX53D + Z, DX54D + Z, DC51D + Z, DC52D + Z; SGCC; S350GD, etc.
StandardAISI, ASTM, BS, DIN, GB, JIS
CertificatesSGS, BV, ISO 9001
PackagingStandard export package or as per your requirements
Delivery Time5-25 working days after payment, mainly depending on order quantity



Technical StandardEN10147, EN10142, DIN 17162, JIS G3302, ASTM A653
Steel GradeDx51D, Dx52D, Dx53D, DX54D, S220GD, S250GD, S280GD, S350GD, S350GD, S550GD; SGCC, SGHC, SGCH, SGH340, SGH400, SGH440,SGH490,SGH540, SGCD1, SGCD2, SGCD3, SGC340, SGC340 , SGC490, SGC570; SQ CR22 (230), SQ CR22 (255), SQ CR40 (275), SQ CR50 (340),SQ CR80(550), CQ, FS, DDS,EDDS, SQ CR33 (230), SQ CR37 (255), SQCR40 (275), SQ CR50 (340), SQ CR80 (550); or Customer’s Requirement
TypeCoil/Sheet/Plate/Strip
Thickness0.12-6.00mm,or customer's requirement
Width600mm-1500mm, according to customer's requirement
Type of CoatingHot Dipped Galvanized Steel(HDGI)
Zinc Coating30-275g/m2
Surface TreatmentPassivation(C), Oiling(O), Lacquer sealing(L), Phosphating(P), Untreated(U)
Surface StructureNormal spangle coating(NS), minimized spangle coating(MS), spangle-free(FS)
QualityApproved by SGS,ISO
ID508mm/610mm
Coil Weight3-20 metric ton per coil
PackageWater proof paper is inner packing,galvanized steel or coated steel sheet is outer packing , side guard plate,then wrapped by seven steel belt.or according to customer's requirement
Export marketEurope, Africa, Central Asia, Southeast Asia, Middle East, South America, North America, etc


 Hot-dip galvanizing is the reaction of molten metal with an iron substrate to produce an alloy layer, thereby combining the substrate and the plating layer. Hot-dip galvanizing is to pickle iron and steel parts first. In order to remove iron oxide on the surface of iron and steel parts, after pickling, it is cleaned in an ammonium chloride or zinc chloride aqueous solution or a mixed solution of ammonium chloride and zinc chloride.And then sent to the hot-dip plating bath. Hot-dip galvanizing has the advantages of uniform coating, strong adhesion and long service life.
